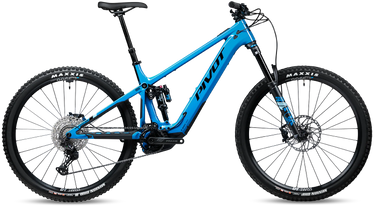

Shuttle AM Bosch Ride SLX/XT
Shuttle AM
AN ALL MOUNTAIN ALL-STAR
Completing Pivot's all-star lineup of e-bikes, the Shuttle AM shines as a crown jewel. Powered by the latest Bosch Performance drive systems, all Shuttle AM models deliver class leading performance. The range-topping Team build features Bosch’s all new, limited-edition Performance CX Race motor, 750Wh battery with Bosch PowerMore range extender capability, SRAM’s new XX transmission, Shimano’s powerful XTR brakes, lightweight carbon cranks, carbon wheels, and all the Fox factory, Kashima coated goodness you could ever want. This all-mountain all-star begs to be the fastest off the line, the fastest up the hill—simply put, it begs to be the fastest, period.
Current battery options as listed in the SKU's - either 625 battery + range extender included or 750 battery with range extender optional .
Original RRP $16995
Sale RRP $12995
SEE FULL SPECS ON THE PIVOT NZ WEBSITE
Details
Ultralight Hollow Core Carbon Frame.
Powerfully Smooth Bosch Performance Line CX Motor, CX Race Motor on Team Builds.
Long-range 750Wh Battery on Team and Pro Builds, 625Wh battery on Ride Builds.
Bosch 250wh PowerMore Range Extender Compatible.
Integrated Power and Mode Display.
Wheel Mounted Speed Sensor.
Wireless Bosch Remote.
160mm Fox 36 Grip 2 Factory Fork.
Flip-Chip Upper Link Mount.
Fully Mulletable and 27.5+” Wheel Compatible.
Pivot Dock Tool System Compatible.
Water Bottle Clearance on All Sizes.
Fox Factory Float X Shock with 148mm of Progressive Suspension Travel.
Injection Molded Rubberized Frame Protection.
Full Internal Routing with Pivot Cable Port System.
Geometry
GEOMETRY AND SIZING

SIZES (HIGH) | SM | MD | LG | XL |
---|---|---|---|---|
A Seat Tube Length (C-T) | 37.8 cm | 39.9 cm | 43.2 cm | 47.0 cm |
B Top Tube Length (Eff.) | 59.8 cm | 63.0 cm | 64.7 cm | 67.0 cm |
C Head Tube Length | 11.0 cm | 12.0 cm | 13.0 cm | 14.0 cm |
D Head Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° |
E Seat Tube Angle (Eff.)* | 76.8° | 76.8° | 76.8° | 76.8° |
F Chain Stay Length | 44.4 cm | 44.4 cm | 44.4 cm | 44.4 cm |
G Bottom Bracket Height | 35.0 cm | 35.0 cm | 35.0 cm | 35.0 cm |
H Bottom Bracket Drop | 2.4 cm | 2.4 cm | 2.4 cm | 2.4 cm |
I Standover Height | 72.0 cm | 72.0 cm | 72.0 cm | 72.0 cm |
J Wheelbase | 121.6 cm | 125.0 cm | 126.9 cm | 129.4 cm |
Stack | 62.9 cm | 63.8 cm | 64.7 cm | 65.6 cm |
Reach | 43.5 cm | 46.5 cm | 48.0 cm | 50.0 cm |
* Effective seattube angles are calculated at an average saddle height for each size frame.
