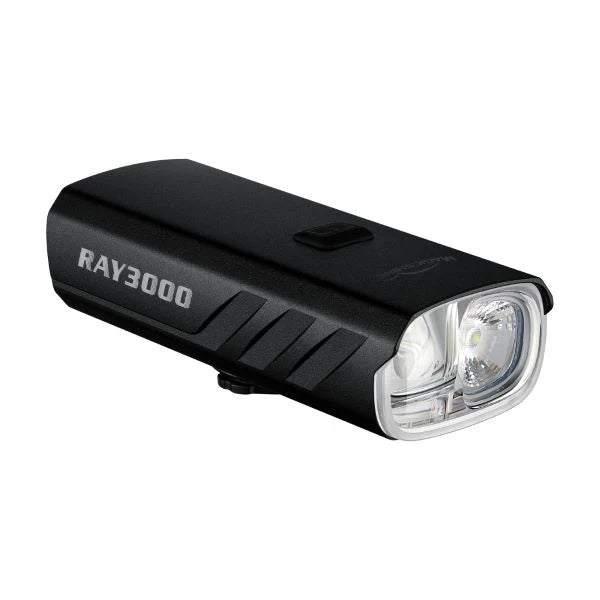

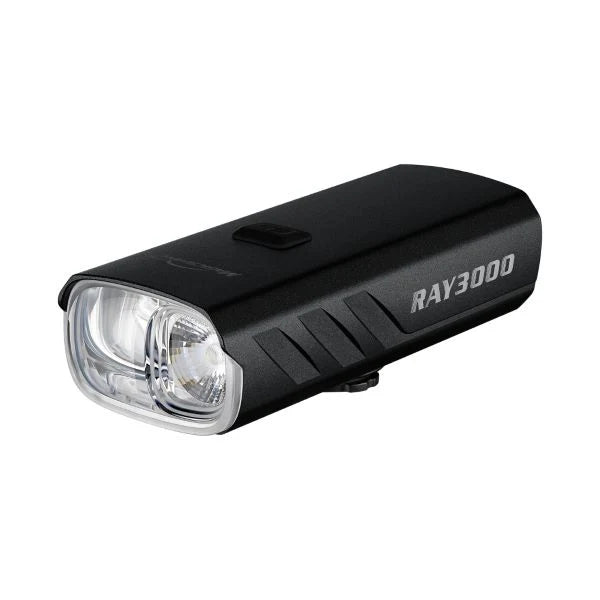

Magicshine Ray 3000
Go further with the all-new RAY 3000. Engineered for daring off-road adventures and epic long-distance journeys, it combines a powerful 3,000-lumen output with a high-capacity 10,000mAh battery to deliver reliable, high-performance lighting across varied terrain.
Optical Precision & Safer Ride:

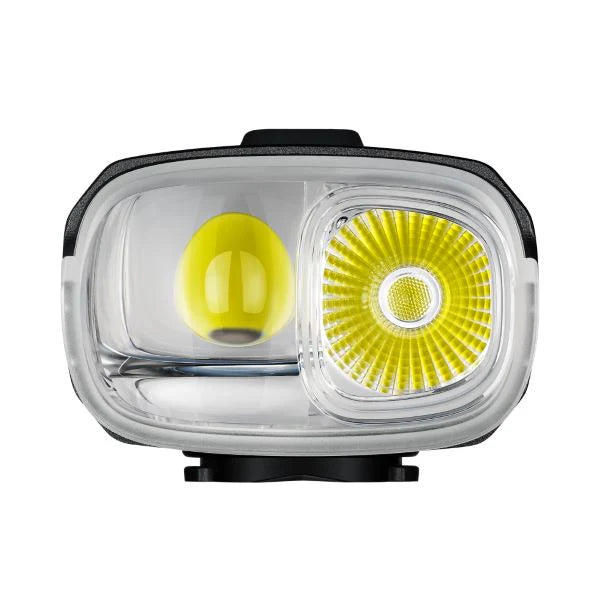

- Precision meets clarity in the RAY 3000’s dual-beam optics system. By integrating high-output LEDs with precision-engineered lenses, it delivers a wide-angle cut-off low beam and a long-range high beam, illuminating complex riding environments with greater confidence and control.
- Cut-off Low Beam: Precision cut-off optics keep the beam sharply defined below eye level, producing a wide and uniform road spread without glare to oncoming traffic—ensuring clear forward vision while maintaining shared-road safety.
- High-Output High Beam: The powerful 3000-lumen high beam reaches up to 288 meters, revealing terrain details and obstacles far ahead. From winding trails to unlit mountain roads, it provides the extended visibility required for rapid response to changing terrain.
Endurance That Goes Further:
- Powered by a high-capacity 10,000mAh battery, built with two 5,000mAh cells in series, the RAY 3000 delivers up to 33 hours of runtime to sustain extended off-road adventures and multi-day expeditions.
- APP-based brightness customization enables output adjustment to optimize endurance for different riding conditions and route demands.
- Equipped with 30W USB-C fast charging, a full recharge is achieved in just 2 hours, reducing downtime between rides. Beyond illumination, the RAY 3000 functions as a portable power source with reverse
- charging support for essential devices such as bike computers, smartphones and action cameras.
Seamless Smart Control:
- Integrated with ANT+ and FTR technology, the RAY 3000 creates a unified lighting ecosystem that reduces distraction and keeps riders focused on the road ahead.
-
Bike Computer Integration: Seamlessly connects with compatible bike computers such as Garmin and Wahoo via ANT+. Monitor battery status, adjust brightness, and manage modes directly from the on-screen display. -
FTR LightSync Control: Synchronizes the front light, taillight, and remote into a cohesive command network. Manage the entire system instantly without taking hands off the handlebars. -
Instant Max Output: Instantly unleash full 3000-lumen output with a single press. Perfect for sudden terrain changes, high-speed descents, or unexpected obstacles.
Built for Extreme Reliability:
- True adventure demands uncompromising reliability. The RAY 3000 features an one-piece aluminum housing for durability, impact resistance, and efficient heat dissipation. IPX6 water resistance protects against heavy rain, splashes, and mud for stable all-weather performance. A reinforced aluminum mount with a Garmin-compatible quick-release base provides secure, vibration-resistant installation for rough terrain and demanding riding conditions. Combining professional optics, extended endurance, smart integration, and rugged durability, the RAY 3000 delivers the absolute reliability required to sustain performance over any distance.
Features:
- Dual-beam optical system integrates a cut-off low beam with a long-range high beam for near and far illumination.
- 3000-lumen maximum output reaches up to 288 meters for confident high-speed riding and technical terrain recognition.
- Precision cut-off low beam delivers clear road illumination without dazzling oncoming traffic.
- 10,000mAh battery delivers up to 33 hours of runtime for long-distance rides and multi-day adventures.
- 30W USB-C fast charging fully recharges the light in approximately 2 hours.
- Reverse charging function to power essential devices such as bike computers and smartphones.
- ANT+ connectivity enables integrated light control and battery display on bike computers.
- FTR function syncs front and rear lights through one-click remote control.
- Instant max output illuminates the road ahead and reveals hazards for faster reaction and safer riding.

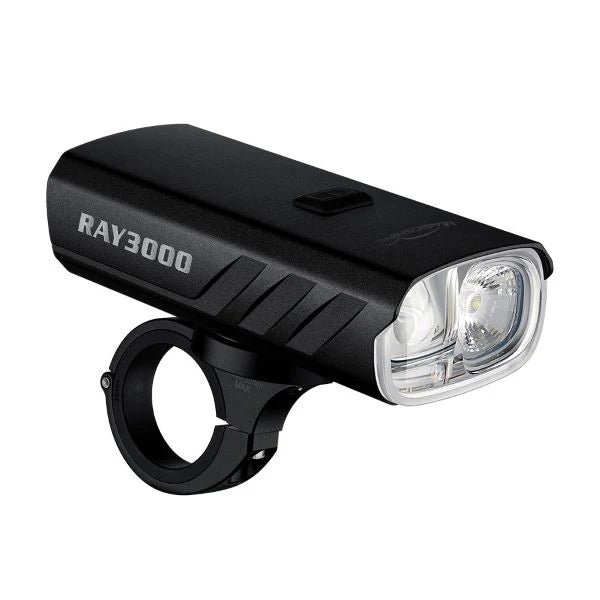

- Rugged aluminum mount with a secure, impact-resistant fit and a quarter-turn quick-release.
- One-piece aluminum construction with IPX6 waterproof protection for all-weather performance.
- Smart lockout prevents accidental activation during daily carry or storage.
- Memory function and battery indicator enhance everyday usability.
| Mode | Low Beam | High Beam | ||||||
| Low | Medium | High | Low | Medium | High | Night Flash | Day Flash | |
| Lumens | 375 | 750 | 1500 | 7450 | 1500 | 3000 | 165-900 | 0-1500 |
| h:min | 22:30 | 10:30 | 4:30 | 13:30 | 6:30 | 3:00 | 24:30 | 33:00 |
In the box:
RAY 3000 x 1
Handlebar mount x 1
MJ-6558 remote control (incl. strap) x 1
USB-C charging cable x 1
3mm hex key x 1
Nylon shim (28mm/32mm/35mm) x 3
User manual x 1
