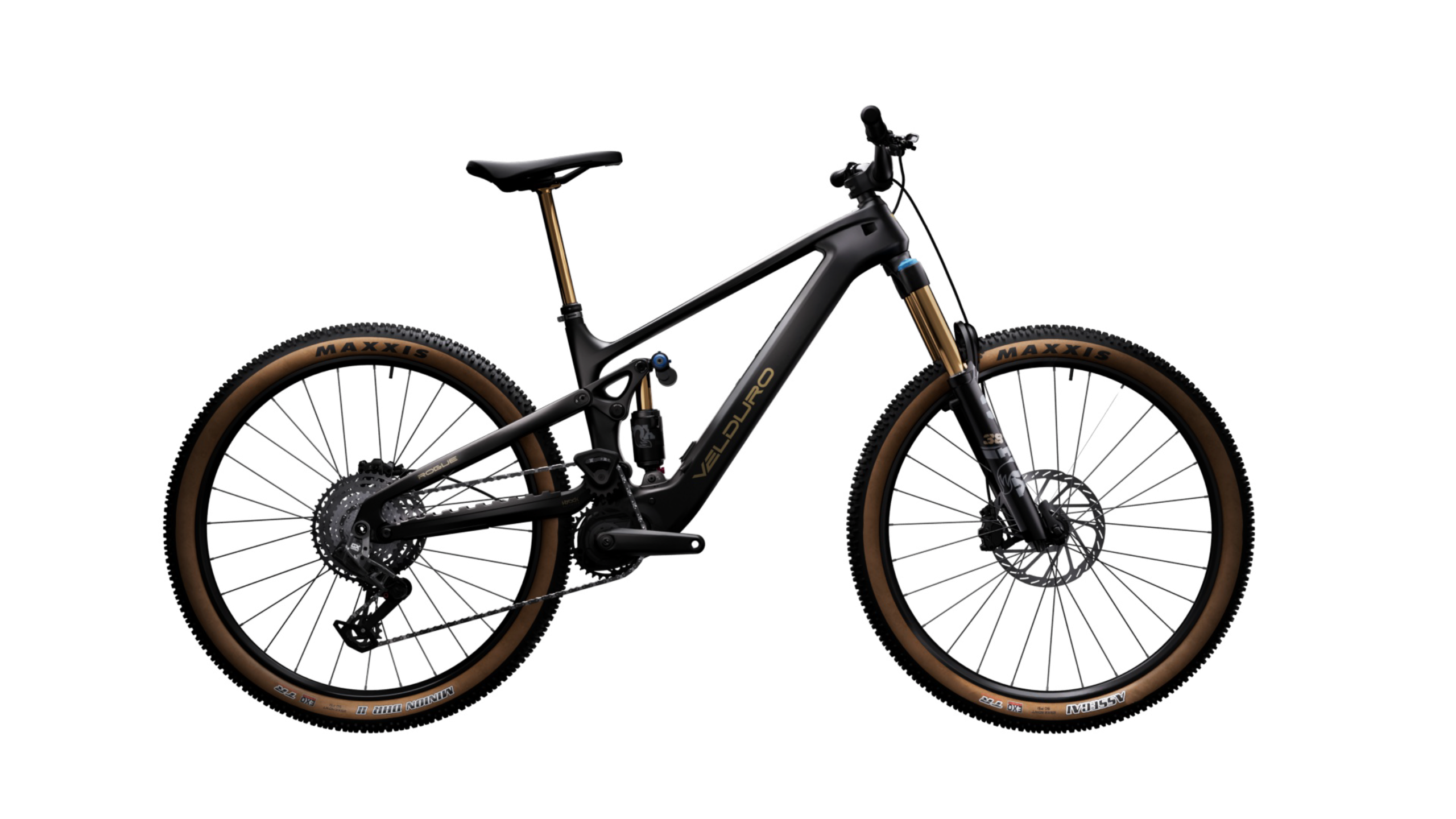

VELDURO ROUGE R EMTB
PLEASE CONTACT US FOR AVAILABILTY
DEFY THE LIMITS
Conquer more with less
The Rogue E-Enduro was designed to tackle New Zealand’s gnarliest trails. This bike allows you to climb the steepest tracks and descend with speed and control. Using the patented i-Track suspension system, the Rogue offers power, control, and style.
DJI’s Avinox drive (120 N·m torque + 1000W Boost Mode) rewrites climbing physics. Its torque curve syncs perfectly with i-Track’s anti-squat kinematics, keeping the rear tire planted even on the toughest of slopes. When you point the Rogue downhill, our mid-pivot idler and i-Track’s progressive suspension curves take over. 170mm of rear travel soaks up the bumps, while the chassis stays stable and centered, letting you carve through any terrain.
We believe we have found the mid-pivot sweet spot between high-pivot and low-pivot kinematics to capture the best of both configurations.
For Enduro riders who refuse to choose between climbing efficiency and descending madness, Rogue is the ultimate ride.
i-track suspension
Lower Kick-back + optimised anti-squat
The i-track suspension has multiple benefits. By repositioning the rear axle path, Rogue’s rear wheel tracks terrain, creating stability on chaotic descents. The idler pulley silences chain slap and eliminates pedal kickback, and its ingenious patented position on the chainstay enables precision optimisation of antisquat kinematics.
DJI AVINOX DRIVE SYSTEM
DJI’s Avinox Drive System redefines e-biking with its compact power and smart tech. The M1 Drive Unit (2.52 kg) delivers 105 N·m torque, aided by a planetary gearset and noise-reducing polymers for quiet, efficient performance. Four riding modes (Auto, Eco, Trail, Turbo) adapt to terrain, while Boost mode unleashes 120 N·m torque and 1,000W power for 60 seconds.
Two IP56-rated batteries (600/800 Wh) offer fast charging (800Wh: 0–75% in 1.5 hours) and a battery health system for longevity (80% capacity after 500 cycles). A 2-inch OLED touch screen (800 nits, waterproof) displays ride data, customizable via the Avinox app, which also enables Bluetooth unlocking and theft alerts.
Dual wireless controllers simplify mode changes, while an IMU sensor enables walk-assist for steep pushes. Certified by TÜV SÜD/Rheinland, the system is backed by DJI’s global service network.
Combining DJI’s engineering with e-bike agility, Avinox balances power, portability, and smart connectivity for seamless rides.
Shock Flip Chip
Two Bikes in One
Flick the AM/Enduro chip at the shock mount, and Rogue morphs. "AM" mode prioritizes pedaling efficiency; flip to "Enduro" to unlock 5mm extra travel (172mm max) and slackened head angles for steep, rowdy lines.
ONE BIKE FOR ALL
CONQUER MORE WITH LESS
The Rogue isn’t confined to a single identity. In Standard Mode (170mm fork / 165mm rear), it’s a trail-taming beast. Switch to All-Mountain Mode (160mm front/rear) for flowy precision, or unleash Enduro Mode (180mm front / 170mm rear) to dominate brake-burning descents.
Diji’s 120 N-m Avionx drive binds these personas into one unstoppable force. Its torque isn’t just raw power—it’s intelligent aggression, syncing with suspension kinematics to float over roots or claw up 40% grades. No more “uphill vs. downhill” dilemmas.
The Rogue’s modular frame can adapt to your needs and riding style. Swap the travel, tweak geometry or switch wheel sizes and customize your ride to create your Dream Machine.

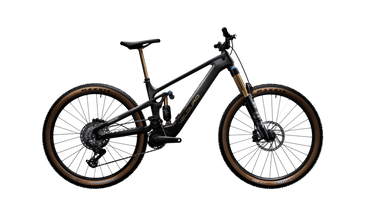

Rogue R
HANDLEBAR SYSTEM
Oneup Handlebar, alloy, 800L, 35R
Oneup Alloy CNC stem 35mm dia, 42mm long
FSA No.57 MTB 44/56 alloy headset
Velduro enduro thick grips
SUSPENSION SYSTEM
FOX 38 K Float fork 29’ F-S 2026,170mm travel
FOX Float X2 F-S 2026, trunnion 205X65mm
SADDLE SYSTEM
One-up V3 dropper
S:180mm, M&L:210mm, XL:240mm travel
Fizik terra aidon X5 145mm
BRAKE SYSTEM
Sram maven silver 4-piston hydraulic brake
Sram HS2 disc front220/rear200 mm
DRIVE SYSTEM
Sram EMTB eagle chainwheel34T
Avinox SL Crank155 mm
Sram AXS POD Controller
Sram GX Eagle Derailleur w/power cable
Sram XS1275 T-type12 S cassette10-52T
Sram GX T-type chain
Rogue R
HANDLEBAR SYSTEM
Oneup Handlebar, alloy, 800L, 35R
Oneup Alloy CNC stem 35mm dia, 42mm long
FSA No.57 MTB 44/56 alloy headset
Velduro enduro thick grips
SUSPENSION SYSTEM
FOX 38 K Float fork 29’ F-S 2026,170mm travel
FOX Float X2 F-S 2026, trunnion 205X65mm
SADDLE SYSTEM
One-up V3 dropper
S:180mm, M&L:210mm, XL:240mm travel
Fizik terra aidon X5 145mm
BRAKE SYSTEM
Sram maven silver 4-piston hydraulic brake
Sram HS2 disc front220/rear200 mm
DRIVE SYSTEM
Sram EMTB eagle chainwheel34T
Avinox SL Crank155 mm
Sram AXS POD Controller
Sram GX Eagle Derailleur w/power cable
Sram XS1275 T-type12 S cassette10-52T
Sram GX T-type chain
WHEEL SYSTEM
Front Wheel: Raceface Turbine eMTB29 inch
Rear Wheel: Raceface Turbine eMTB27.5 inch XD
Front tire: MAXXIS ASSEGAI29*2.5 with tube
Rear tire: MAXXIS MINION DHR II27.5*2.4 with tube
Rogue R weighs 22.5KG
